Products Description

The 9J4352, 9J-4352, and 1U3352 CAT J350 Digger Standard Tooth is designed for use in difficult construction and excavation tasks. These premium teeth are well suited for CAT J350 series excavators, backhoes, and wheel loaders, providing superior penetration and wear in nearly all working conditions. These replacement teeth work well for OEM parts, ensuring reliable and efficient use in harsh conditions.

Specification:

Part No.	9J4352,9J-4352,1U3352
Weight	6.1KG
Hardness	48-52 HRC
Shock Resistance	≥ 20J
Adapter	3G8354/6I6354/3G5358/3G5359
Pin	9J6583
Washer	6Y9459
Replacement Brand	Caterpillar (CAT)
Color Options	yellow or customized colors available
Logo	"N" logo, "FHND" logo, Customized OEM logo

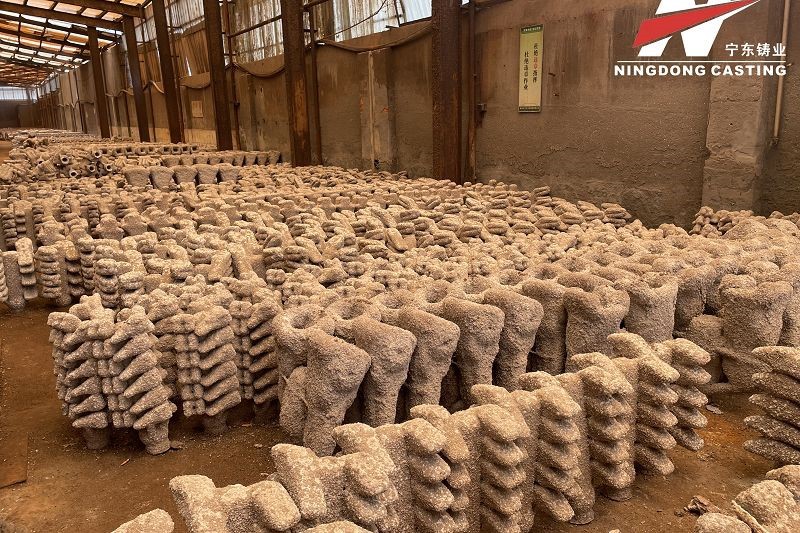

Production Processes	Coated Sand Casting, Forged Bucket Teeth Manufacturing, Precision Casting
Packaging	Normal plywood cases about 1tons per case
Delivery Time	35-45 days after order confirmation
Price term	FOB Ningbo
Payment terms	T/T, L/C, Other payment as discussion
Samples	Offer samples free of charge, but freight collect
Certifications	ISO 9001:2015
Certifications	SGS Certified
Port	Ningbo, China
Place of Origin	Zhejiang, China(Mainland)

Product Features

OEM Quality

These teeth are custom made to fit all caterpillar equipment seamlessly, and to work with all Caterpillar Machinery Tools. These teeth are tailored to ensure perfect operation with Caterpillar equipment. The tough conditions at work will not take a toll on performance or reliability because the Cat J350 teeth bucket are built to exceed Caterpillar J350 specifications.

High Hardness

The 1U3352 teeth retain their wear resisting hardness between 48 and 52 HRC, making them flawless to use during extensive excavation and earth moving tasks. Their high 48-52 HRC strength ensures sharpness and usefulness over time.

Versatile Compatibility

Fleet efficiency improves with these bucket teeth because they are not model specific unlike other J350 series attachments. Cat 1U3352 teeth are compatible with numerous models and types of Caterpillar loaders and excavators powemachinery.

Premium Material

These teeth are custom tailored from alloy steel, and this material selection improves service life Band increases performance in all heavy-duty tasks. The 1U3352 teeth are built to last, If you are looking for top of the line durability, then you have struck gold.

Durable Pin & Retainer

Installation is not an issue with the new 9J2358 Pin and 8E6359 Retainer. These components enable quick installation because they offer both durability and ease. Federally Undforged pieces constructed to last eliminate any chance of failure or premature wear.

Benefits

Maximize Productivity

The 1U3352 bucket teeth prolongs the time between tooth replacement and minimizes downtime, which keeps your machines working at peak performance for longer. This advancement results in shorter workdays and yields greater output enhancing overall productivity on the job site.

Enhanced Performance

The 1U3352 teeth's cutting edge geometry is perfect for tough digging conditions because of the high hardness and premium alloy steel from which it is constructed. This helps to increase the performance of excavators and loaders making them more effective in penetrating the soil, gravel and even the heavily compacted earth thus increasing the speed of the digging operations.

Reduced Operational Costs

Investing in teeth like the 1U3352 with high service life and superior wear resistance lowers maintenance and replacement costs over the life of the equipment. In the long run, operators will not have to replace teeth as often which will significantly reduce operational expenses and improve the overall cost effectiveness of the machinery.

Improved Safety

With the high shock resistance 1U3352 teeth, the occurrence of failure or breakage of the teeth while in operation is minimized enhancing safety and security. Related to this strength and reliability is essential for equipment safety on site accidents resulting from equipment malfunction are avoided allowing your operations to run smoothly.

Caution When Using The Devices: Precautionary Notes As Detailed

Failing To Regularly Maintain Can Lead To Overly Abrasive Conditions

The 1U3352 teeth are able to sustain a fair level of damage but putting them through extreme abrasive conditions like rocks, severely compacted earth, or gravel will put them in rough shape, this is why its necessary to more regularly do inspections and maintenance. Following required maintenance intervals, including wear examinations, pins and retainers inspections, and component lubrication is crucial. Consistent maintenance also helps in elongating the life of the teeth and avoiding excess damage or breakage.

Remember To Perform Wear and Tear Examination Checks

Due to the fact that the 1U33552 teeth need to withstand a lot of force and strain, the frequency of careful checking in the wear and tear examinations performed is vital for its effectiveness its fully optimized. If signs of wear and tear are present on the teeth, pin and retainer, they need to be replaced to ensure productivity levels are retained. Neglecting this time bound activity will have severe repercussions including reduced efficiency, increased wear and tear, along with disturbing other essential equipment parts.

Always Pay Special Attention To Installation Placement

The misalignment of installation of the components will lead to the setting teeth, pins and retainers, resulting in a lack of proper fitting and uneven wearing of the teeth. Such practices and behaviors encourage rough performance, excessive wearing out of the teeth and parts, and quicker reduction of functionality of the equipment.

FAQ

Q: What is the recommended pin and retainer for this tooth?

A: This tooth uses a pin 9J2358 and a retainer 8E6359.

Q: Why use this CAT style bucket tooth?

A: The aggressive shape and tough materials used in the tooth make it more penetrating, allow it to last longer, and give it greater strength against fatigue.

Q: What is type of the tooth system with relation to 9J4352?

A: A CAT type of bucket system is used with approved interchangeable tooth systems for various uses.

Q: Does the 9J4352 tooth fit other brands?

A: As specified under the description, this product was designed to replace tooth for a Caterpillar systems. However, it might also fit with other models having the same specs.
