Products Description
Specification:

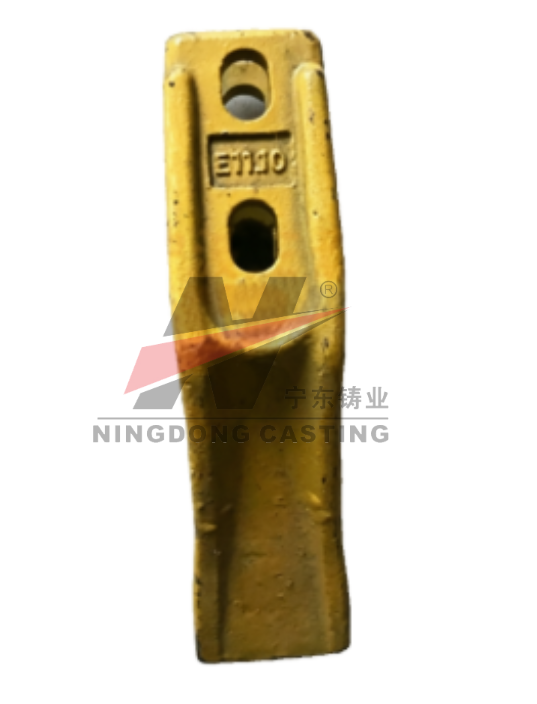

Product Name:E11.10 Bucket Tooth Fork Type ESTI
Weight: Welcome to inquire
Brand Name: Custom Logo
Material: High-spec alloy steel
Color: Yellow, or as required
Process: Investment casting / Lost wax casting/sand casting/forging
Packing: a Normal plywood case about 2tons per case
Tensile Strength ≥1400Rm-N/mm²
Shock ≥20J
Hardness: 48-52HRC
Certification: ISO9001:2008
Samples: Offer samples for free of charge, but freight collect.
Place of Origin: Zhejiang, China (Mainland)
| ESTI REF. | FIG. | DIMENSIONS (mm) - L | DIMENSIONS (mm) - A | DIMENSIONS (mm) - T | DIMENSIONS (mm) - I | DIMENSIONS (mm) - S | DIMENSIONS (mm) - C | DIMENSIONS (mm) - D | WEIGHT (kg) | BOLT-NUT | MINI DIGGER BOLT ON CENTRE BUCKET TEETH Mini-03 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E 11.1 | 1 | 190 | 50 | 37 | 45 | 17 | 13 | - | 1,2 | E 600 B / E 600 N | Mini Construction Machinery E11.4 ESTI Fork Tooth |
| E 11.10 | 4 | 190 | 50 | 30 | 22,5 | 17 | 13 | 20 | 1,2 | E 600 B / E 600 N | Mini-03 Bucket Tooth Point For Mini Excavator Loader |
| E 11.2 | 1 | 190 | 50 | 27 | 45 | 17 | 13 | - | 1,2 | E 600 B / E 600 N | E11.4 1000.3 Customized Reversible Bucket Middle Tooth |
| E 11.4 | 2 | 190 | 50 | 37 | 40-45 | 17 | 13 | 18 | 1,2 | E 600 B / E 600 N | Standard Miniexcavator Bucket Teeth E11.4 |
| E 11.5 | 1 | 190 | 50 | 40 | 45 | 15 | 13 | - | 1,2 | E 600 B / E 600 N | |
| E 11.7 | 3 | 190 | 50 | 21 | 55 | 13 | 13 | - | 1,2 | E 600 B / E 600 N | Mini Excavator Digging E11.4 Bucket Tooth |
| E 11.8 | 3 | 190 | 50 | 18 | 55 | 13 | 13 | - | 1,2 | E 600 B / E 600 N | Mini Fork Teeth Range E11.4 1000.3 |
