Products Description
Specification:

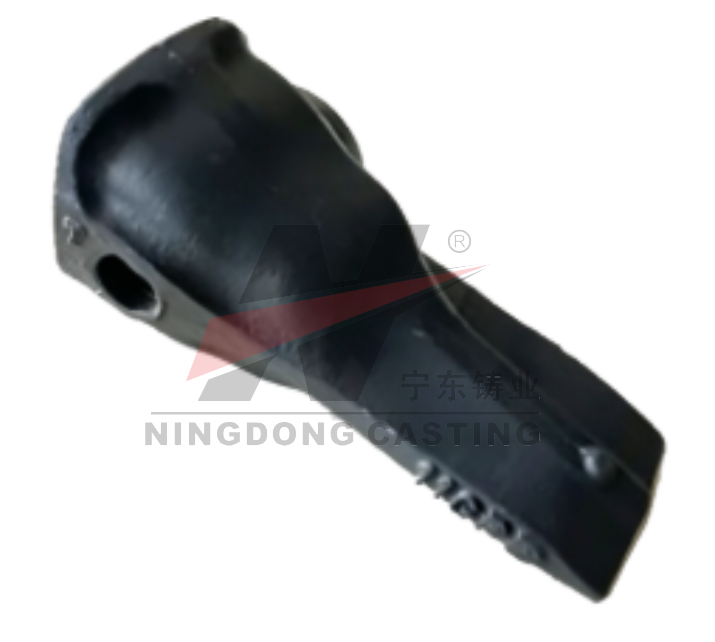

Part No.:11GPE14744546 VOLVO EC140 Bucket Tip Point
Weight: Welcome to inquire
Brand Name: Custom Logo
Replacement: Brand VOLVO
Material: High-spec alloy steel
Color: Cat Yellow, or as required
Process: Investment casting / Lost wax casting/sand casting/forging
Packing: a Normal plywood case about 2tons per case
Tensile Strength ≥1400Rm-N/mm²
Shock ≥20J
Hardness: 48-52HRC
Certification: ISO9001:2008
Samples: Offer samples for free of charge, but freight collect.
Place of Origin: Zhejiang, China (Mainland)
| Teeth Designation | Part No. | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 11GPE | VOE 14744546 | 200 | 70 | 93 | 86 | 2.5 |
| 16GPE | VOE 14732376 | 224 | 80 | 109 | 102 | 4.0 |
| 21GPE | VOE 14732381 | 255 | 105 | 116 | 111 | 5.6 |
| 31GPE | VOE 14732386 | 268 | 113 | 134 | 123 | 7.5 |
| 41GPE | VOE 14732391 | 292 | 126 | 135 | 133 | 9.6 |
| 56GPE | VOE 14732396 | 320 | 137 | 164 | 147 | 13.0 |
| 66GPE | VOE 14732401 | 348 | 144 | 177 | 167 | 16.5 |
| 81GPE | VOE 14732404 | 381 | 165 | 197 | 175 | 22.7 |
